Highlights

• Single axis slope capability of 25%
• Working range of 2,000 ft. w/ R9 receiver
• Accuracy: ±14 arc sec. (±.080" per 100' or ±2.0mm per 30m)
• Rotation speed of 600 rpm
• 3-year Guardian Warranty
• Self-leveling range: ±4 degrees
• Visible 670nm laser beam (<1mW)
• 115-hour operation w/ 4 alkaline batteries
• CDRH and IEC Class 2 laser classification

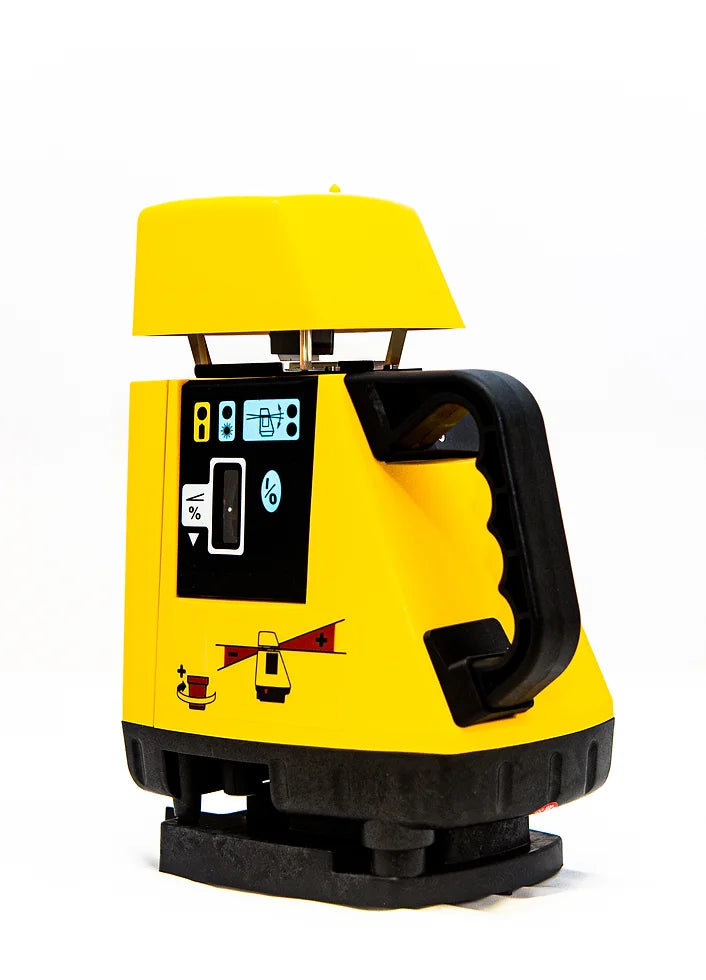

The Pro Shot AS2 Grade Laser combines superior precision and excellent performance to provide solution to most construction needs such as grading, leveling, excavating, and drainage applications. It offers 25 percent single axis slope capability with accurate 0.01-percent increments for setting specific slopes. It is equipped with a visible 670-nanometer red laser beam that conforms to CDRH and IEC standards.

Featuring servo motor leveling technology, this Pro Shot single grade laser is self-leveling within ±4 degrees. It has 360-degree rotation coverage and a wide working range of up to 2,000-foot diameter with R9 laser receiver. It performs with accuracy of ±14 arc seconds (±.080 inch per 100 feet or ±2.0 millimeters per 30 meters) and rotation speed of 600 revolutions per minute. With a height alert mechanism, it ensures correct and accurate reading at all times.

The Pro Shot AS2 Grade Laser comes with machine control compatibility for maximum flexibility and functionality. It includes four C-cell alkaline batteries and operates for up to 115 hours. NiMH rechargeable batteries can also be used for up to 85-hour runtime. It is supplied with a clamp and a carrying case for easy transport and convenient storage. With a three-year Guardian Warranty, it guarantees reliable service and long-lasting efficiency.

AS2

• 14 arc sec. accuracy (2.0mm per 30ft)
• 2000' Diameter (305m)
• 0 to 25% precision slope
• True Automatic Leveling

100% Temperature Tested

Every AS2 is individually tested through a range of temperature to assure that it will perform under your jobsite conditions, whatever they may be.

Precision slope laser, great value.  The Pro Shot™ AS2 laser level tool is the class leader for delivering value in a precision slope laser.  Dial-in up to a 25% slope, with resolution down to .01%.  That is fine enough to set specified slopes straight from an engineer’s cut sheet on a sanitary sewer project.  This self leveling laser won’t let you down, with degrading accuracy as higher slopes are entered, like its competitors.  It is also fully self leveling when slope is dialed-in.

AS2 Specifications

​

Range with R9 Receiver.................   2000' dia., 1000' rad . (610m/305m)

Accuracy............................................   ±14 arc sec. (± .080 per 100') (± 2.0 mm per 30m)

Slope Capability...............................   0 - 25% Single Axis, .01% increments

Rotation Coverage • Speed............   360° @ 600 rpm

Compound Slope Adapter..............   Optional

Leveling Technology • Range.........   Servo Motor • ±4°

Machine Control Compatible...........  Yes, Including high speed rotation

Warranty............................................  6 Year Champion Warranty

Power source • Life...........................  Four Alkaline C- cells @ 120 hours continuous

Rechargeable Battery • Life.............  Optional NiMh kit @ 95 hours continuous

AS2 Laser Classification................    CDRH and IEC Class 2

Dust and Water Sealed....................   To international standard IP56

Operating Temperature...................   -4° F to +140° F (-20° C to +60° C)
